1970 - 1981 GM "F" Body Vehicles

SHOW PREPARED MODEL
SHOWN WITH PS LINE SET

*GM deep vs. shallow master cylinder design:

"early / deep"                 "late / shallow"

NOTE: Part # 3022L is the brake unit itself without power steering line set. Part # 3022 is the brake unit with the 4' power steering line set
* Requires installation of a 2nd gen GM F Body power brake spec pedal if installing this system into a factory manual brake vehicle

"early / long MC pushrod"                                     "late / short MC pushrod"

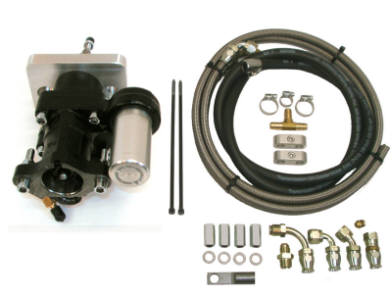

1970 - 1981 General Motors 'F' Body Hydraulic Brake Assist Unit - Model # 3022

o CNC Machined T6 billet aluminum direct fit firewall mounting plate design
o This model fits the later GM "short rod / shallow" master cylinder design
o All engines with PS pump on driver's side - compatible with rack and pinion conversions
o For use with disc / drum or disc / disc brakes (not for use with 4 wheel drum brakes)
o Features an adjustable brake pedal rod to allow for a range of brake pedal height adjustment
o Models with PS lineset include overlength hoses with re-usable / re-buildable hose ends
o 7 1/4 " installed length from firewall to MC mounting flange - no firewall modifications required

RESTORE A MUSCLECAR SEMA TRANS AM
  WITH HYDRATECH SYSTEM 3022 INSTALLED

HOTROD MAGAZINE PROJECT "F-BOMB"
WITH HYDRATECH SYSTEM 3022 INSTALLED

®
